Model 2000
| Description | Model | |
|---|---|---|

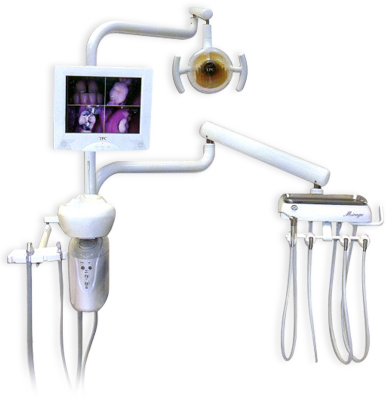

| Mirage Chair Mounted Delivery System with Cuspidor | 2000 | |
| Mirage Chari Mounted Delivery System | 2015 | |
| Package include the following: | (with cuspidor) | (without cuspidor) |
| Asepsis 3 Handpiece automatic control with coolant controls,flex arm with air brake, diaphram block design, wet/dry variable speed foot control, deluxe utility center with air/water filter and regulators, master shut off valves. Include 3 way syringe and light post with curout for internal wires and monitor bracket |  |
|
| Porcelain cuspidor with timed bowl rinse and cup filler, telescoping 4 position assistant's package, Hve and saliva ejector, water/air quick disconnects,solids collector and clean water system. | |
|
| Asepsis telescoping 4 position assistant's package, Hve and saliva ejector, water/air quick disconnets, solids collector and clean water system. | |
|
| Light Post | |
|
Standard Features
- Asepsis automatic control for three handpiece
- Individual handpiece pressure adjustments
- Non-retracting water coolant with on/off
- Individual water coolant flow controls
- Air coolant flow control
- Handpiece tubing flush system
- Ultra soft handpiece tubing
- 4-hole straight gray asepsis tubing with Midwest connector
- Stainless steel tray with non-skid pad
- Disc foot control wet/dry toggle with 7' of smooth tubing
- Equipment utility conter with asepsis housing
- Vacuum canister with solids collector screen.
- Water outlet quick disconnect with volume control
- Air outlet quick disconnect for prophy jet
- Self contained water system with city/bottle selector switch
- Straight light post for unit mount dental light
- Pre-wiring for fiber optic light source
- Air-actuated counterbalanced arm lock
- 3 way syringe on unit head
 |
 |
| Cuspidor Bowl:The deep contoured bowl is made of fine porcelain for easy cleaning and infection control.The Cuspidor operates smoothly with the timed bowl rinse,cup filler and swing-away arm. | Optional:Multi media flat screen monitor for chair side intraoral imaging, patient education,cable tv and DVD viewing. |
 |
 |
| Control Head: Easy to read pressure gauge. Easy access controls for simple adjustments. Ultra soft handpiece tubing minimizing hand and wrist stress. | Built in self contained water bottle system including city/bottle selector switch. |
 |
 |
| Optional: Super thin x-ray viewer mounted to unit head. | Built in air and water quick disconnect for ultrasonic scaling and prophy jet |
